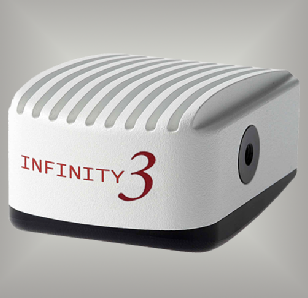

Lumenera Infinity 3-1UR un-cooled CCD Cameras

Lumenera Infinity 3 CCD digital microscope research camera 3-1UR, 3-1URC, 3-1URM, 3-1URFC, 3-1URFM, fluorescence sensitivity

The Lumenera Infinity 3-1UR series of CCD digital cameras offer exceptional low light sensitivity needed for most fluorescence imaging situations.

The Infinity 3-1UR models are excellent for microscope applications with very low levels of available illumination (e.g. - All but trace level fluorescence). For extreme low light fluorescence applications see the Infinity 3-1 Peltier cooled ultra sensitive models.

1.4 MP Research Grade CCD Digital Fluorescence Microscope Cameras

APPLICATIONS

Research Microscopes: Stereo or Compound
Research Level optical systems
Specialty fluorescence systems

Ideal choice for:

Fluorescence Applications
Research Laboratories
Biomedical sub-assembly build

Infinity 3-1URC

1.4 Megapixel Color
2/3” CCD Sensor 6.45um x 6.45um pixels
1392 x 1040 resolution
Software: Infinity Analyze, Infinity Capture, TWAIN
USB 2.0 interface / power
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

Lumenera Infinity 3-1URF fluorescence CCD digital microscope research camera 3-1URFC, 3-1URFM, fluorescence bundle

CLICK for On-line

Store and Pricing

Infinity 3-1URM

1.4 Megapixel Monochrome
2/3” CCD Sensor 6.45um x 6.45um pixels
1392 x 1040 resolution
Software: Infinity Analyze, Infinity Capture, TWAIN
USB 2.0 interface / power
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

MODELS

DOWNLOAD 3-1URC Spec sheet

DOWNLOAD 3-1URM Spec sheet

Infinity 3-1URFC

Same as 3-1URC, 1.4 Megapixel Color
Includes Media Cybernetics Image-Pro Premier (9 mo)
Includes Advantage Pack LuIAP-2
Std. Software: Infinity Analyze, Infinity Capture, TWAIN
‘BLACK’ Edition housing
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

Infinity 3-1URFM

Same as 3-1URM ,1.4 Megapixel Monochrome
Includes Media Cybernetics Image-Pro Premier (9 mo)
Includes Advantage Pack LuIAP-2
Std. Software: Infinity Analyze, Infinity Capture, TWAIN
‘BLACK’ Edition housing
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

MODELS- Special Fluorescence Bundles

DOWNLOAD 3-1URC Spec sheet

DOWNLOAD 3-1URM Spec sheet

BLACK edition housing
