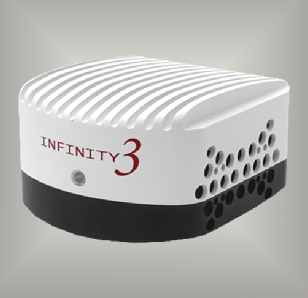

Lumenera Infinity 3-1, 3-1PF Cooled CCD Cameras

Lumenera 3-1 Peltier-cooled 1.4 MP Digital Research Microscope Camera 3-1, 3-1C, 3-1M, 3-1PFC, 3-1PFM

The Lumenera Infinity 3-1 series of Peltier Cooled CCD digital cameras offer exceptional trace level light sensitivity needed for the most demanding fluorescence imaging situations.

The Infinity 3-1 cooled models are superb for microscope applications with the lowest levels of available illumination (e.g. - trace level fluorescence). Designed for extreme low light fluorescence applications with no noise.

1.4 MP Research Grade Peltier Cooled CCD Digital Fluorescence Microscope Cameras

APPLICATIONS

Microscope: Compound Research
Monozoom optical systems
Stand alone research optical systems

Ideal choice for:

Research Laboratories
GFP, FISH, NIR, FRET imaging
Science and Geology Labs

Lumenera Infinity 3-1PF fluorescence Peltier cooled CCD digital microscope research camera 3-1PFC, 3-1PFM, fluorescence bundle

BLACK edition housing

Infinity 3-1C Peltier Cooled

1.4 Megapixel Color / Peltier Cooled to -25°C
2/3” CCD Sensor 6.45um x 6.45um pixels
1392 x 1040 resolution
Software: Infinity Analyze, Infinity Capture, TWAIN
USB 2.0 interface / power
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

Infinity 3-1M Peltier Cooled

1.4 Megapixel Monochrome / Peltier Cooled to -25°C
2/3” CCD Sensor 6.45um x 6.45um pixels
1392 x 1040 resolution
Software: Infinity Analyze, Infinity Capture, TWAIN
USB 2.0 interface / power
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

MODELS

DOWNLOAD 3-1C Spec sheet

DOWNLOAD 3-1M Spec sheet

Infinity 3-1PFC Peltier Cooled

Same as 3-1PFC, 1.4 Megapixel Color / Cooled
Includes Media Cybernetics Image-Pro Premier (9 mo)
Includes Advantage Pack LuIAP-2
Std. Software: Infinity Analyze, Infinity Capture, TWAIN
‘BLACK’ Edition housing
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

Infinity 3-1PFM Peltier Cooled

Same as 3-1PFM ,1.4 Megapixel Monochrome / Cooled
Includes Media Cybernetics Image-Pro Premier (9 mo)
Includes Advantage Pack LuIAP-2
Std. Software: Infinity Analyze, Infinity Capture, TWAIN
‘BLACK’ Edition housing
Dimensions : L = 3.85”, W =2.00”, H = 2.75”

CLICK for On-line

Store and Pricing

MODELS- Special Fluorescence Bundles

DOWNLOAD 3-1PFC Spec sheet

DOWNLOAD 3-1PFM Spec sheet
