ERGO Extender Block
Ergonomic extender for SPZ, Nikon SMZ, Unitron Z series and more.:
This is THE solution for more working room between operator seated position and the microscope optics path.
The ERGO Module adds 3" additional room for your Nikon SMZ800, SMZ1000, SMZ1270, SMZ1500 as well as our SPZ series. Provides a better option to the pricy extended eyetube heads with much less chance of eyetube bending damage and mis-
Ideal for inspection areas where a more upright seated position and added work room are needed. Perfect for biomedical device inspection, large semiconductor wafer inspection, etc.
The ERGO extender modules can be adapted to many other makes of modular construction stereozoom microscopes.
Contact us for additional fitment information or quantity discounts
Ergonomic extender module for Nikon SMZ Stereozoom microscopes
APPLICATIONS
- Promotes proper inspection posture
- Allows comfortable viewing of large wafers
- Can reduce chances of workman’s comp claims
Ideal choice for:
- Industrial manufacturing
- Wafer fabrication and inspection
- Biomedical sub-
assembly build
SPECIFICATIONS
- Installs between the optics zoom body and view head

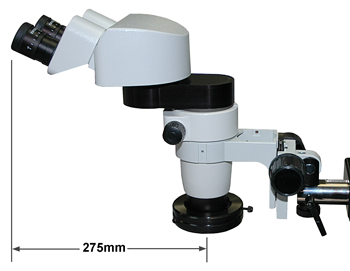

- Increases optical center to eyepieces by 75mm (3”)
- Raises the view head 25mm (1”)
- Excellent optical performance with accurate color
- Direct installation for Nikon and other makes
- Nikon SMZ800 -
SMZ1500 - OEM SPZ600 -
SPZ1000 - Unitron Z10, Z8, Z6
- Other manufacturers -
contact us
Ergonomic Extender Block
Nyoptics Exclusive!
MADE in USA
